4004-0234
Model: PFS200EF

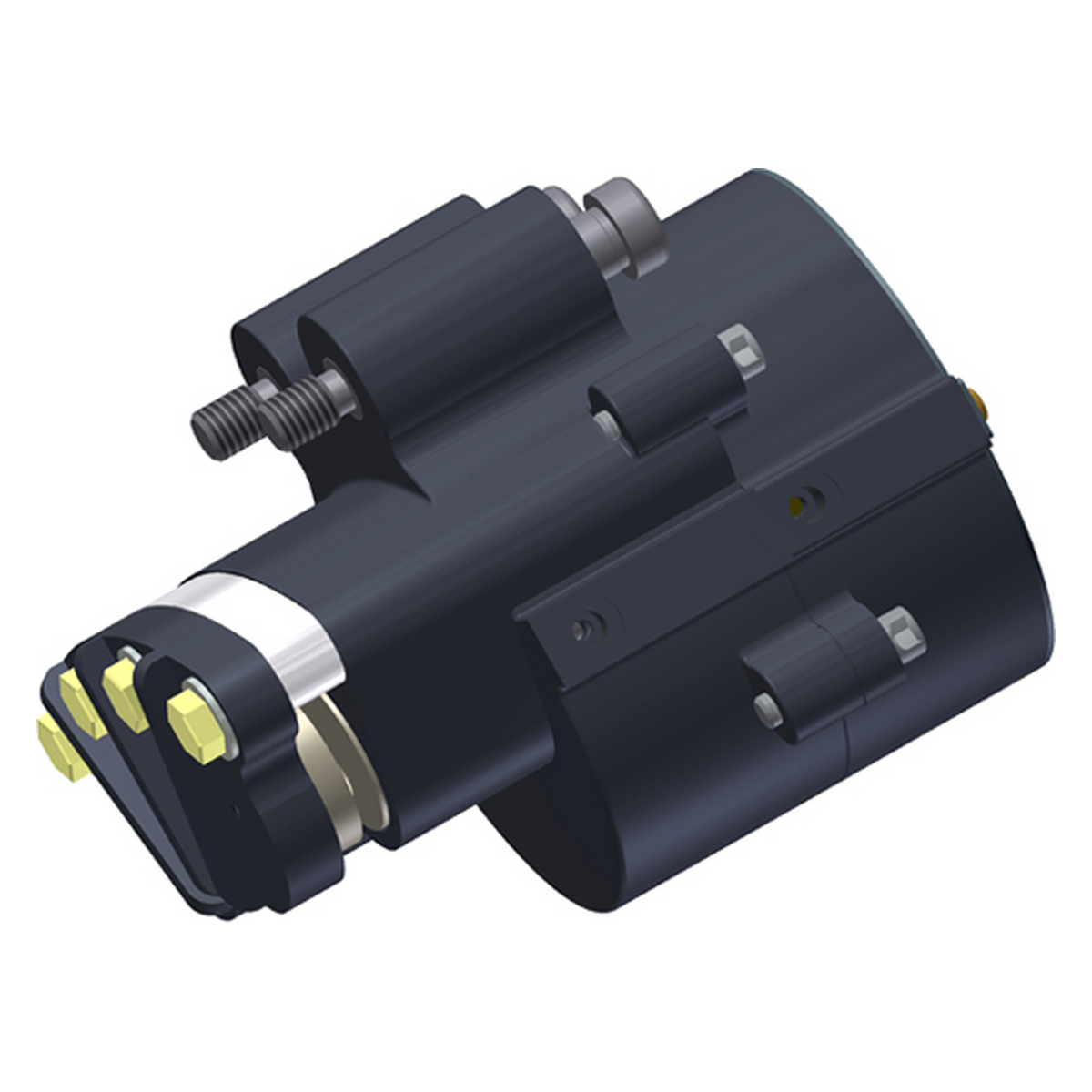

200 series, pneumatic spring applied, single acting caliper disc brake sized for 1/2-inch thick brake disc.
- 85 PSI Retractable
- Aluminum Construction
- Hardcoated
- Dual Belleville Disc Spring Stacks
- Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12" Diameter
- Fits on Brake Discs up to 16-inch Diameter
- Replaceable Friction Pads
- Non-Asbestos Friction Material
- .45 Coefficient of Friction
- 929 lb. Maximum Tangential Force
- 2065 lb. Maximum Clamping Force
- 6626 in. lb. F using 16-inch Disc Diameter
| Additional Info | Dual Pistons. Spring Applied 85 PSI Release |
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Disc Thick. (in.) | 1/2 |
| Model # | PFS200EF |
| Tangential Force | 929 lbf (4132 N) |
Click image to enlarge
