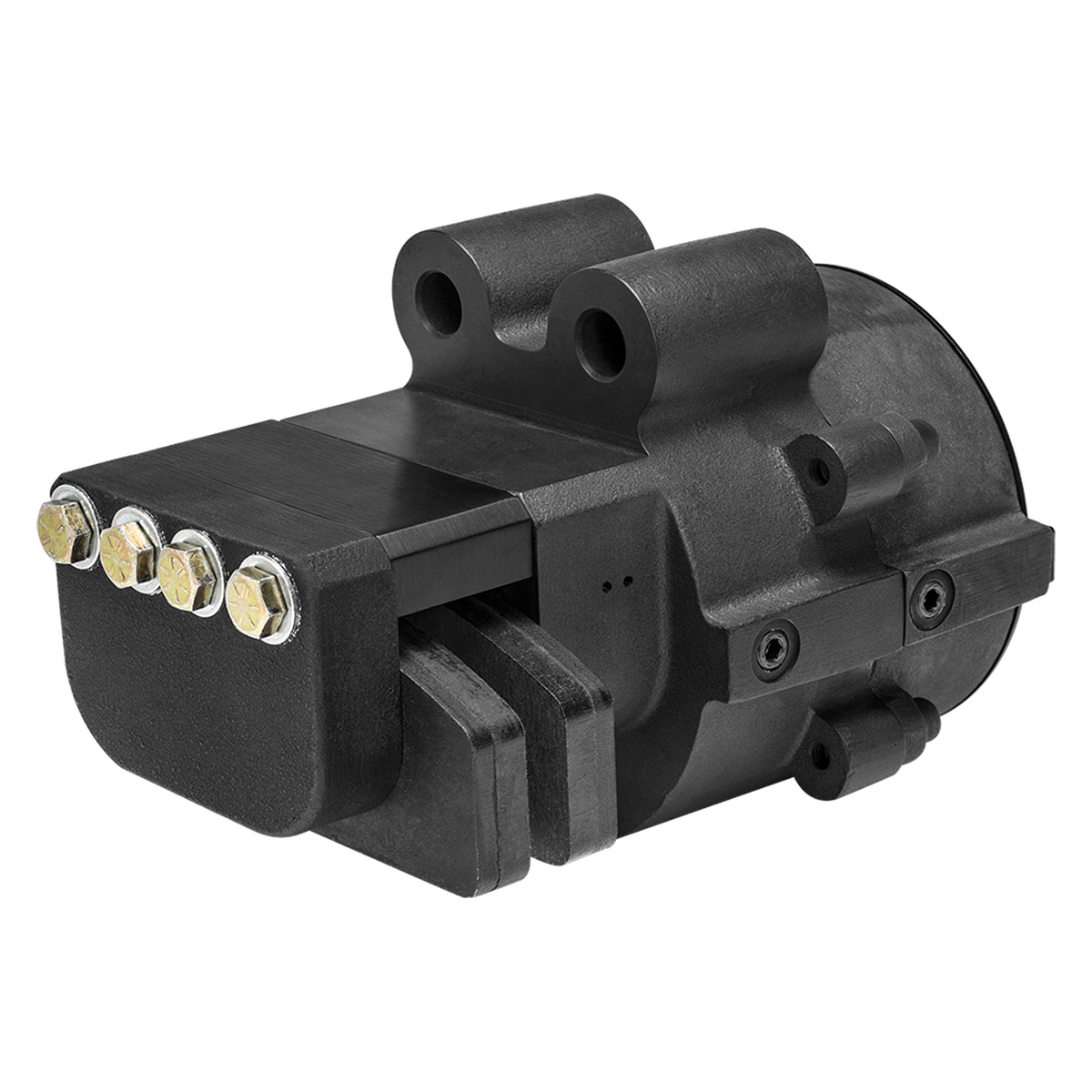

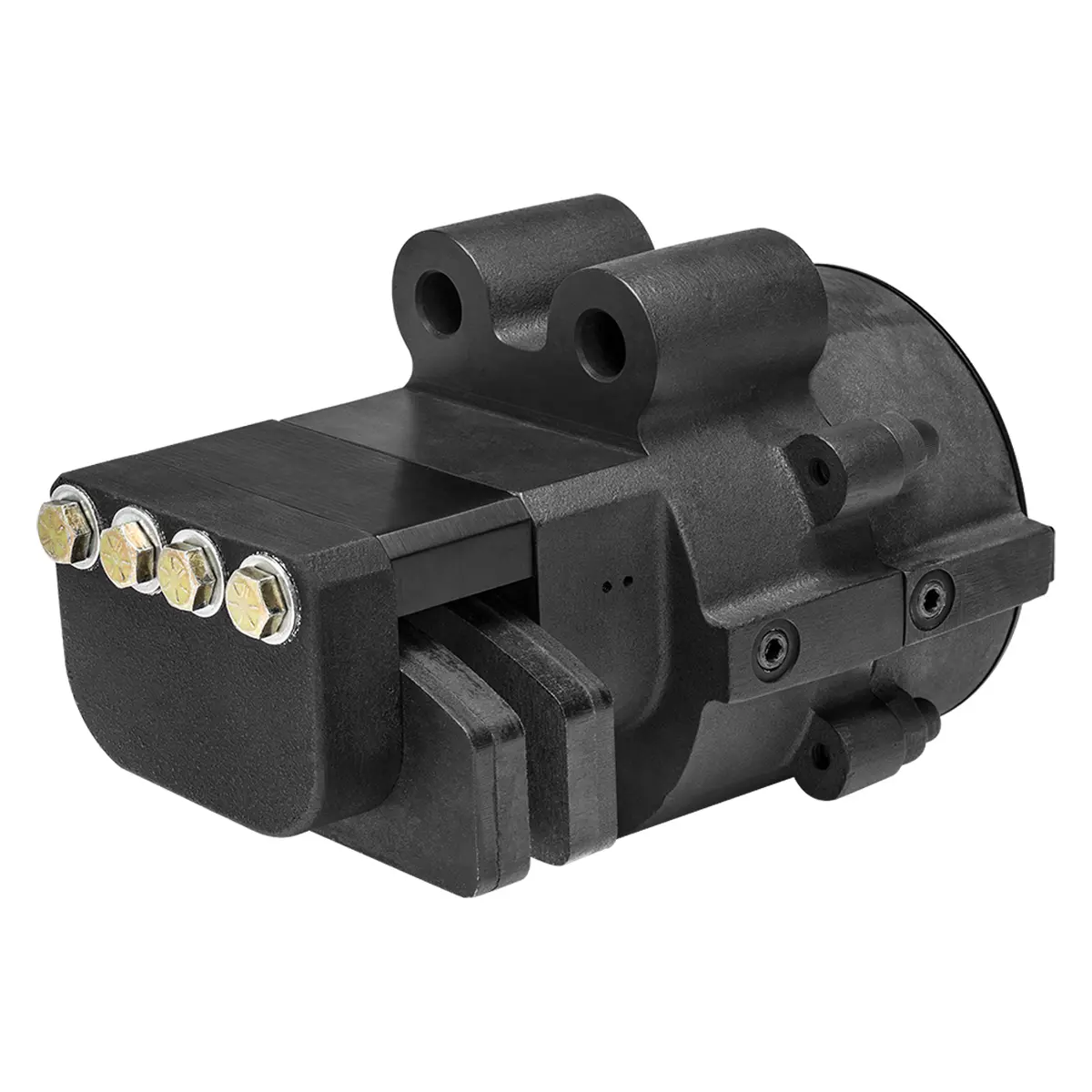

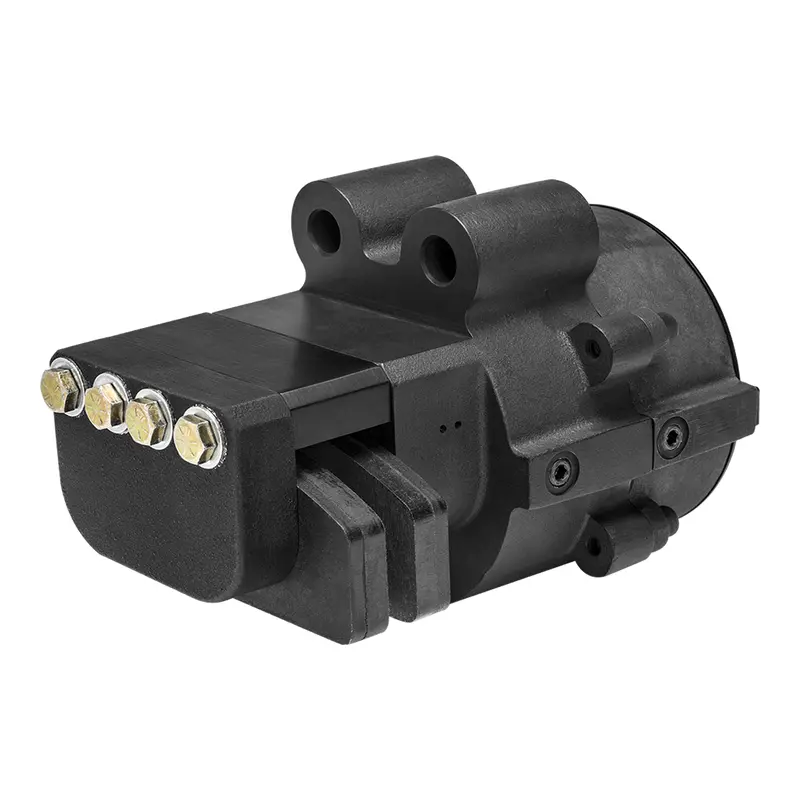

PFS200SUL-EP
Extended Pad Unlimited Disc Series. Used for Emergency Stop & Holding Applications. 85 PSI (5.9 Bar) Release Pressure.
Dual Belleville Disc Spring Stacks | 929 lb. (4132 N) Tangential Force at zero friction pad wear | 13,129 in. lbs. F. using 30-inch disc diameter at maximum tangential force | 2065 lb. clamping force | From 12 inch to unlimited disc diameter | 23.89 sq. in. total friction pad area | 7.72 cu. in. of wearable material | 4.625 in. piston diameter x 2 stage
Click image to enlarge
PFS200UL-EP (Single Acting) Pneumatic Spring Applied Series
| Product # | Model # | Description | Additional Info | Disc Thick. (in.) | Tangential Force | |
|---|---|---|---|---|---|---|
| 4005-0139 | PFS200AFUL-EP | Single Acting, Floating Mount. Use Fixed Disc | Dual Pistons. Spring Applied 85 PSI Release | 5/32 | 929 lbf, (4132 N) | |
| 4005-0140 | PFS200IFUL-EP | Single Acting, Floating Mount. Use Fixed Disc | Dual Pistons. Spring Applied 85 PSI Release | 3/16 | 929 lbf, (4132 N) | |
| 4005-0141 | PFS200BULF-EP | Single Acting, Floating Mount. Use Fixed Disc | Dual Pistons. Spring Applied 85 PSI Release | 1/4 | 929 lbf, (4132 N) | |
| 4005-0142 | PFS200LFUL-EP | Single Acting, Floating Mount. Use Fixed Disc | Dual Pistons. Spring Applied 85 PSI Release | 3/8 | 929 lbf, (4132 N) | |
| 4005-0143 | PFS200EFUL-EP | Single Acting, Floating Mount. Use Fixed Disc | Dual Pistons. Spring Applied 85 PSI Release | 1/2 | 929 lbf, (4132 N) | |
| 4005-0144 | PFS200JFUL-EP | Single Acting, Floating Mount. Use Fixed Disc | Dual Pistons. Spring Applied 85 PSI Release | 5/8 | 929 lbf, (4132 N) | |
| 4005-0145 | PFS200TFUL-EP | Single Acting, Floating Mount. Use Fixed Disc | Dual Pistons. Spring Applied 85 PSI Release | 3/4 | 929 lbf, (4132 N) | |
| 4005-0146 | PFS200OFUL-EP | Single Acting, Floating Mount. Use Fixed Disc | Dual Pistons. Spring Applied 85 PSI Release | 1.0 | 929 lbf, (4132 N) | |
| 4005-0147 | PFS200QFUL-EP | Single Acting, Floating Mount. Use Fixed Disc | Dual Pistons. Spring Applied 85 PSI Release | 1-1/8 | 929 lbf, (4132 N) |
