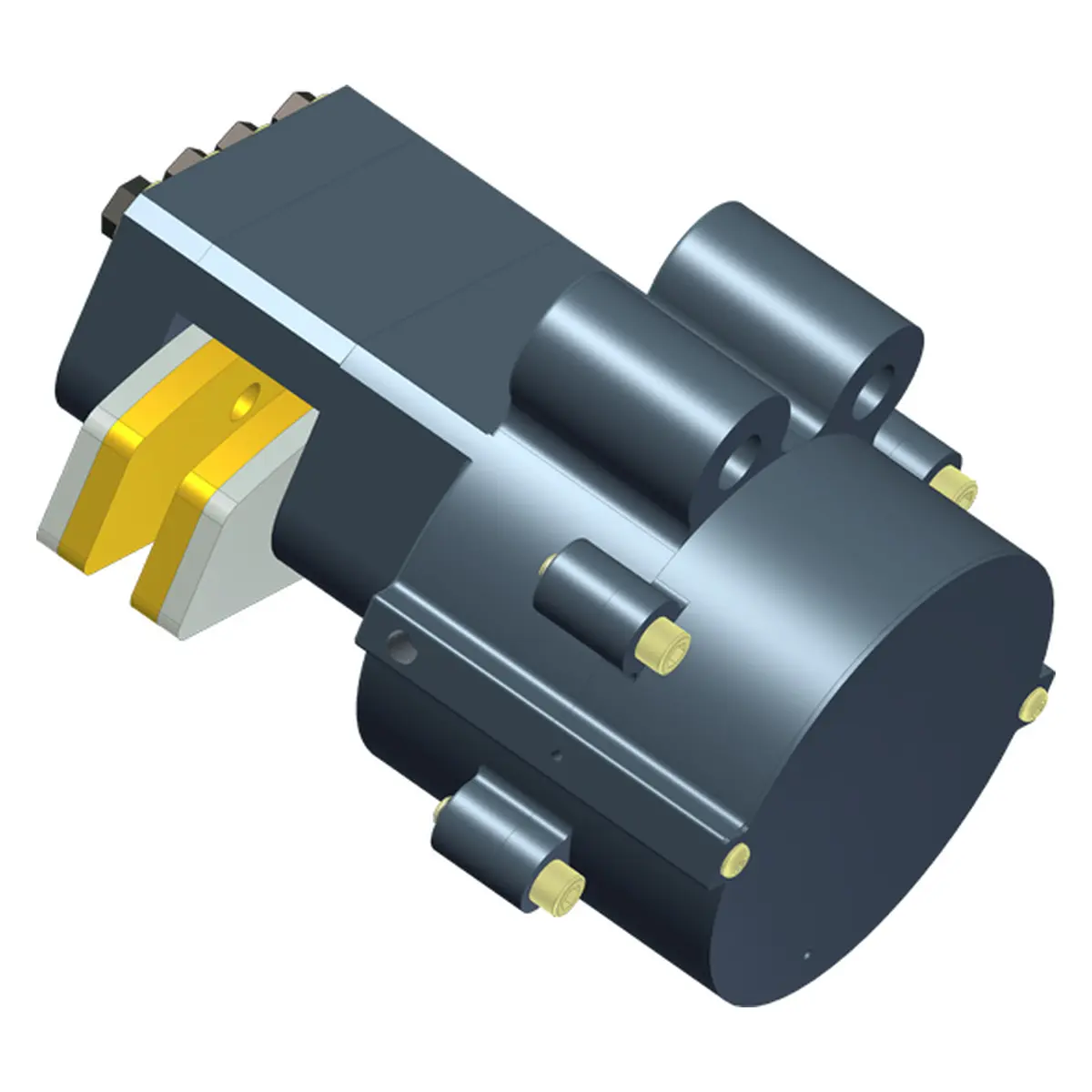

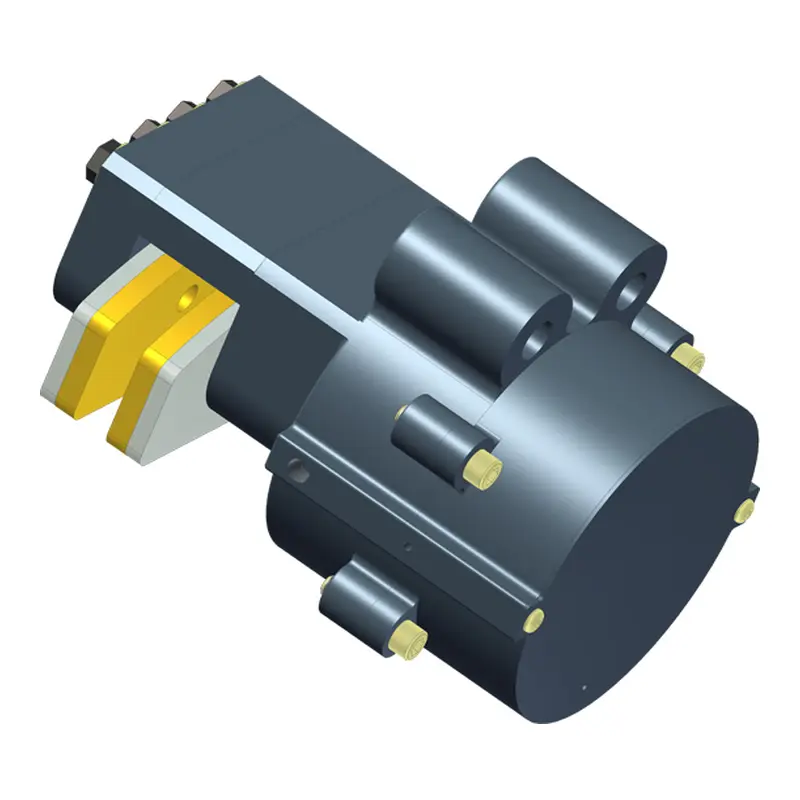

4005-0142
Model: PFS200LFUL-EP
200 extended friction pad series, pneumatic spring applied, single acting caliper disc brake sized for 3/8 inch thick brake disc.
- 23.89 sq. in. total pad area
- 7.72 cu. in. wearable material
- 85 PSI Retractable
- Aluminum Construction
- Hardcoated
- Dual Belleville Disc Spring Stacks
- Available W.C. Branham Brake Discs: 12" and 16" Diameters
- Fits on Brake Discs from 12" to Unlimited Diameter
- Replaceable Friction Pads
- Non-Asbestos Friction Material
- .45 Coefficient of Friction
- 929 lb. Maximum Tangential Force
- 2065 lb. Maximum Clamping Force
- 13,129 in. lb. F using 30 inch Disc Diameter
| Additional Info | Dual Pistons. Spring Applied 85 PSI Release |
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Disc Thick. (in.) | 3/8 |
| Model # | PFS200LFUL-EP |
| Tangential Force | 929 lbf, (4132 N) |
