4005-0129
Model: PFS400JF-EP
400 extended friction pad series, pneumatic spring applied, single acting caliper disc brake sized for 5/8 inch thick brake disc.
- 23.89 sq. in. total pad area
- 7.72 cu. in. of wearable volume
- 100 PSI Retractable Release Pressure
- Aluminum Construction
- Hardcoated
- Dual Belleville Disc Spring Stacks
- Fits on Brake Discs from 12 inch to Unlimited Disc Diameter
- .45 Coefficient of Friction Pad #9511023
- Non-Asbestos Friction Material
- Spring Stacks in Parallel
- Buna-N Seals
- 1859 lb. Maximum Tangential Force
- 35,568 in. lbs. F using 40 inch Disc Diameter
- 4130 lb. Clamping Force
| Additional Info | Dual Pistons. Spring Applied 100 PSI Release |
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Disc Thick. (in.) | 5/8 |
| Model # | PFS400JF-EP |
| Tangential Force | 1859 lbf (8269 N) |

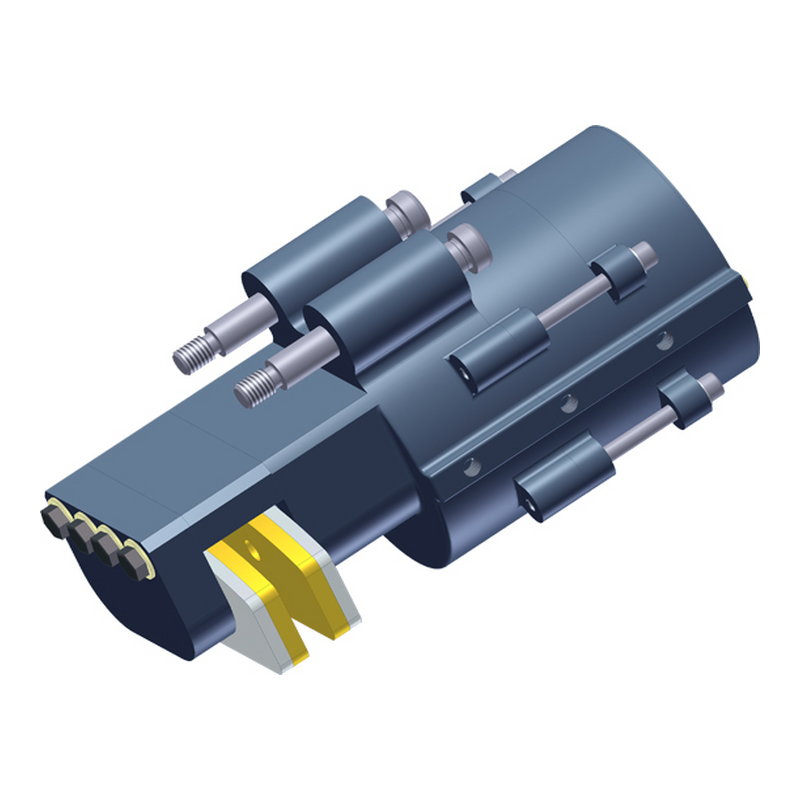

Click image to enlarge
