4004-0256

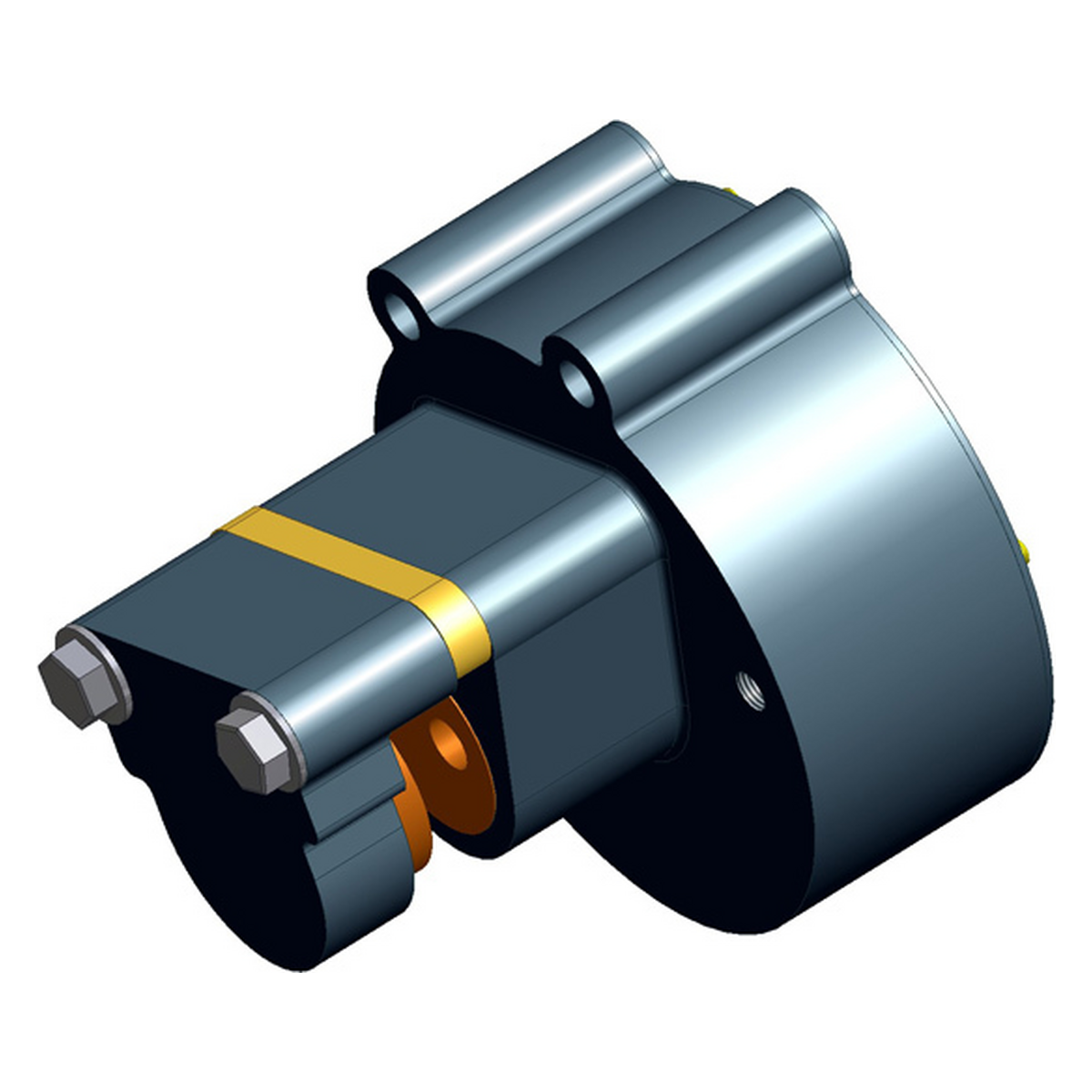

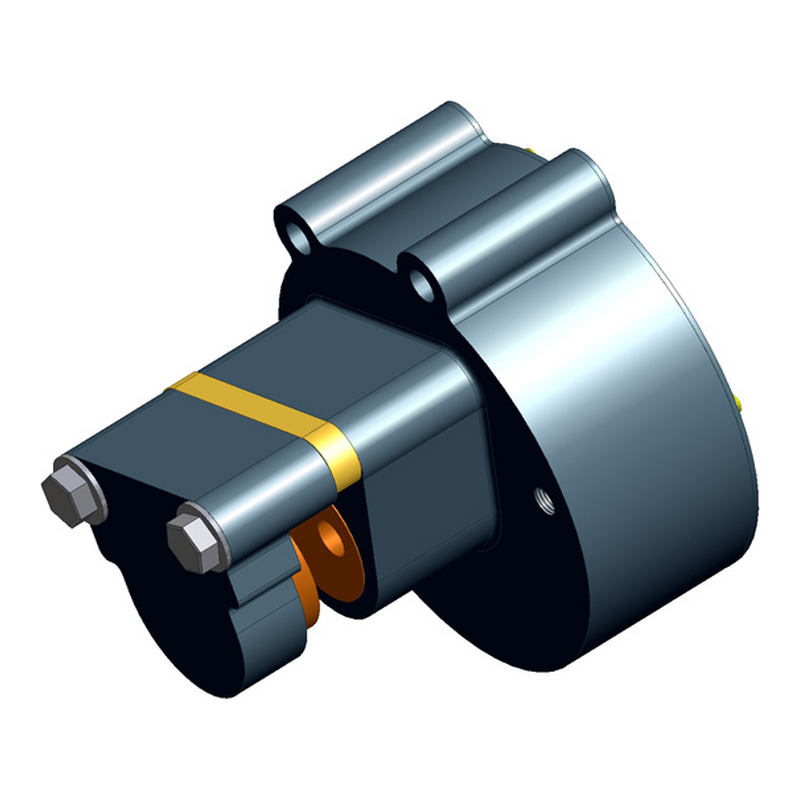

Model: PFS47TF
47 series, pneumatic spring applied, single acting caliper disc brake sized for 3/4 inch thick brake disc.
- 85 PSI Retractable Release Pressure
- Aluminum Construction
- Hardcoated
- Belleville Disc Spring Stack
- Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12" Diameter
- Fits on Brake Discs with Unlimited Diameter
- Replaceable Friction Pads
- .45 Coefficient of Friction
- Non-Asbestos Friction Material
- 1033 lb. Clamping Force Maximum
- 465 lb. Tangential Force Maximum
- 6570 in. lb. Braking Torque using 30 inch Diameter Brake Disc
Additional Info | Single Piston. Spring Applied 85 PSI Release |
Description | Single Acting, Floating Mount. Use Fixed Disc |
Disc Thick. (in.) | 3/4 |
Model # | PFS47TF |
Tangential Force | 465 lbf (2068 N) |
