Insert-A-Shaft® Series 10 1:1, 1" ℄ Bores

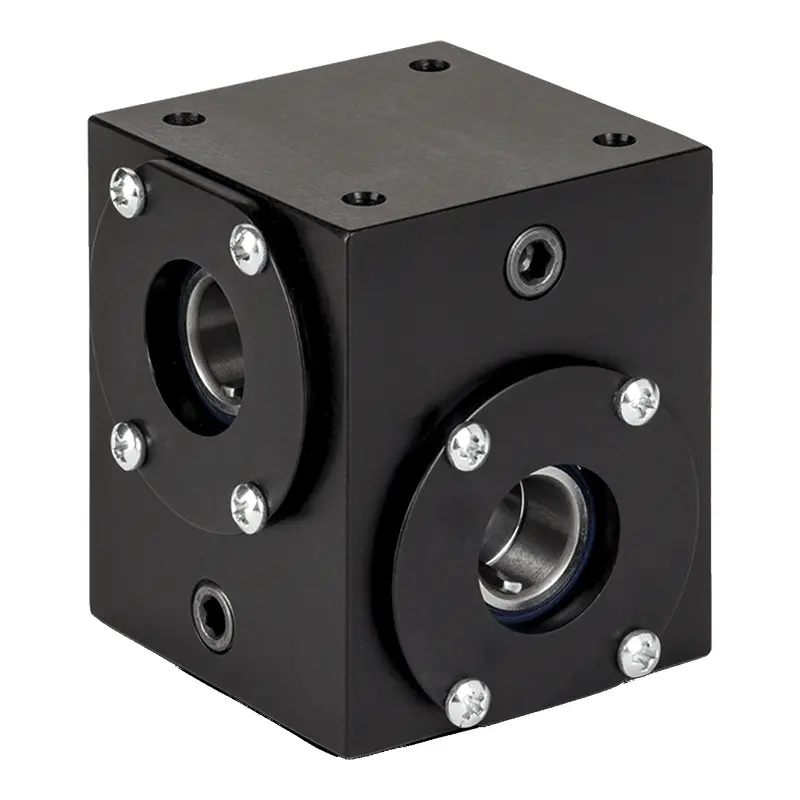

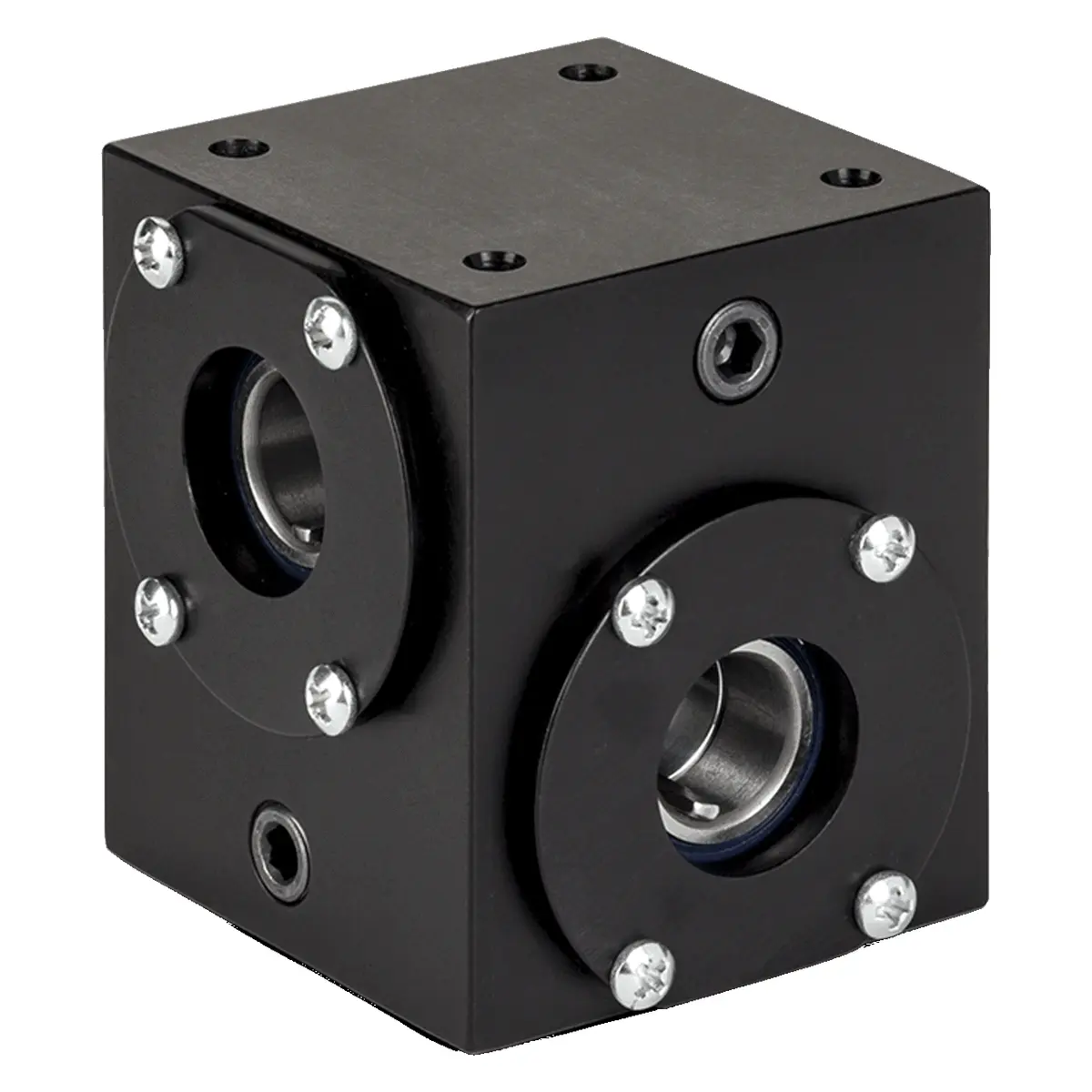

Insert-A-Shaft® Series 10 Mini Right Angle Gearboxes are compact with 1 inch center line bore dimension. 1:1 ratio available. Add-A-Shafts use the ball bearing bores for .500 and .625 inch shaft diameter combinations. Choose from standard flush mounting or optional foot mount (FM) and right or left hand rotation.
Click image to enlarge
Example,IAS10FM1:1RHA.625B.625 - Insert-A-Shaft® Series 10 Mini Right Angle Gearbox, 1:1 Ratio, Foot Mount, Right Hand Rotation, 'A' Bore .625 in. x 'B' Bore .625 in.
Specifications: Speeds to 1800 RPM
Insert-A-Shaft Series 10 Tolerances
| Bore Diameter, in. | Keyway Width, in. |
|---|---|
| Models with .500 in. dia. +.000/-.0003 | .125 + .000/-.002 |
Technical Videos
IAS10 RH Rotation - 'A' Bore - Clockwise; 'B' Bore - Clockwise
IAS10 LH Rotation - 'A' Bore - Clockwise; 'B' Bore - CounterClockwise
