4303-0044

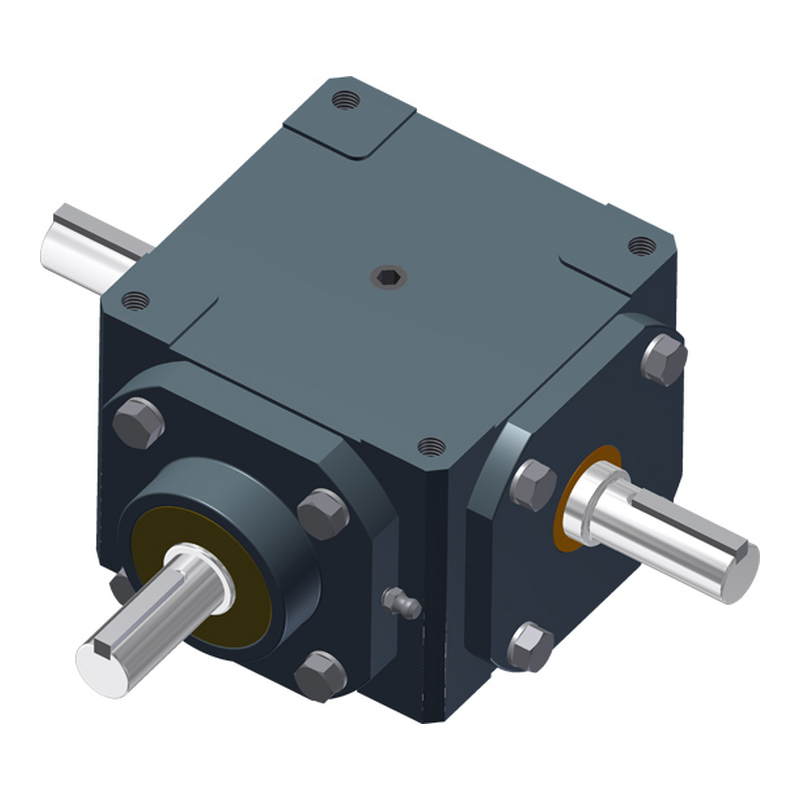

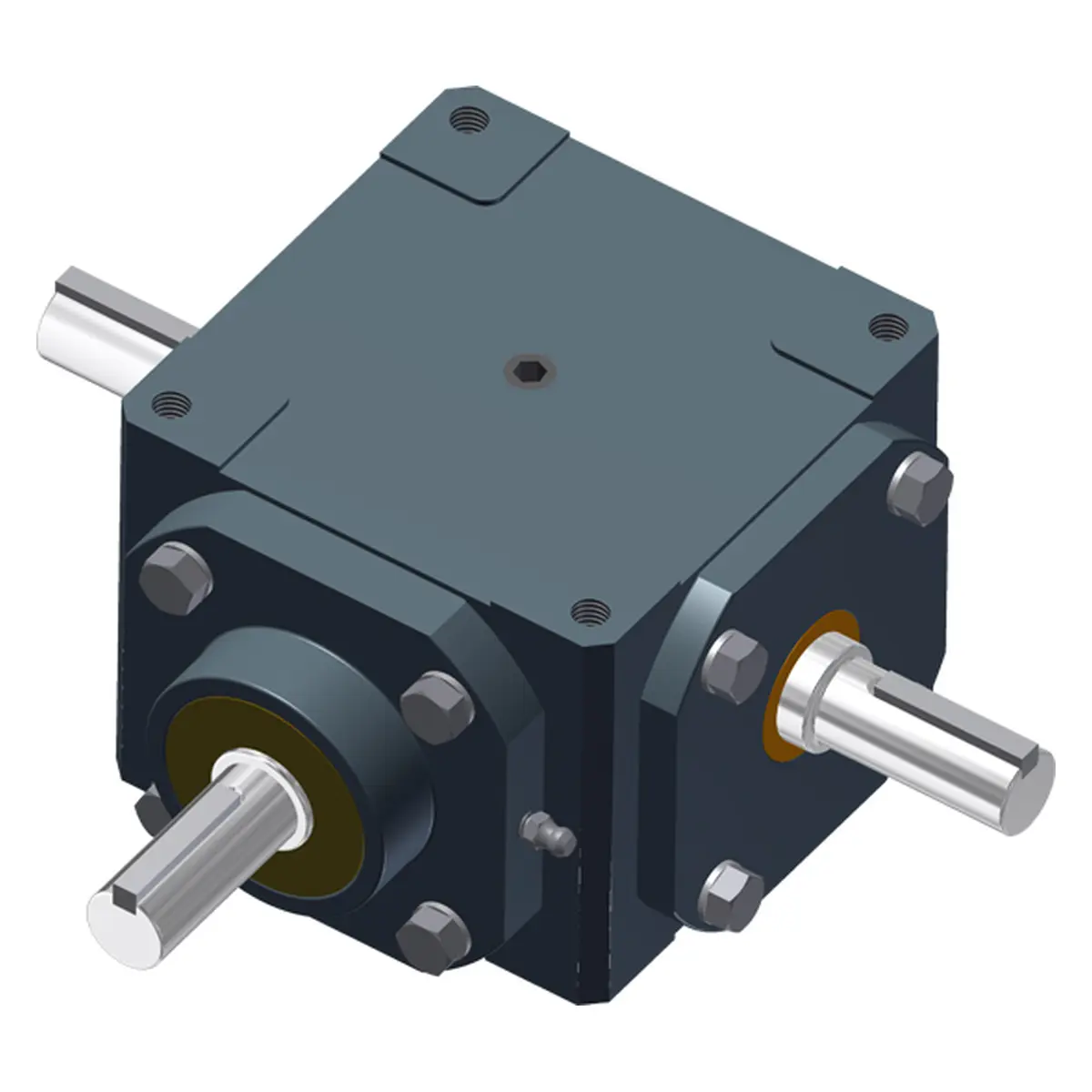

3SB4.125/1:1BM20 Metric Spiral Bevel Gearbox
Spiral Bevel 3-Way Right Angle Gearbox with 4.125 in. Wide Housing, 1:1 Ratio, Base Mounting and 20mm Diameter Shafts
- Sealed, Leak Proof Gearcase
- Machined Aluminum Construction
- Anodized Gearcase
- 303/304 Stainless Steel Shafts
- 8620 12DP 22T Heat-Treated Case-Hardened Gears
- (3) R16 Double Sealed Ball Bearings
- (3) Tapered Roller Bearings
- Dual Lip Spring Loaded Shaft Seals
- Stainless Steel Fasteners
- Pre-Lubricated w/Magnalube®-G GR2 HTEP
- Zerk Porting
- (3) Stainless Steel Keys Included
| # of Ball Bearings | 3 |
| # of Shafts | 3-Way |
| Housing Width (in.) | 4.125 |
| Key Size | 6 mm |
| Max RPM | 1750 |
| Max Torque, (in.lb.) | 693 |
| Model # | 3SB4.125/1:1BM20 |
| Mounting Type | Base |
| Ratio | 1:1 |
| Shaft Dia. | 20 mm |
| Speed Rating | 1750 |
