4303-0050

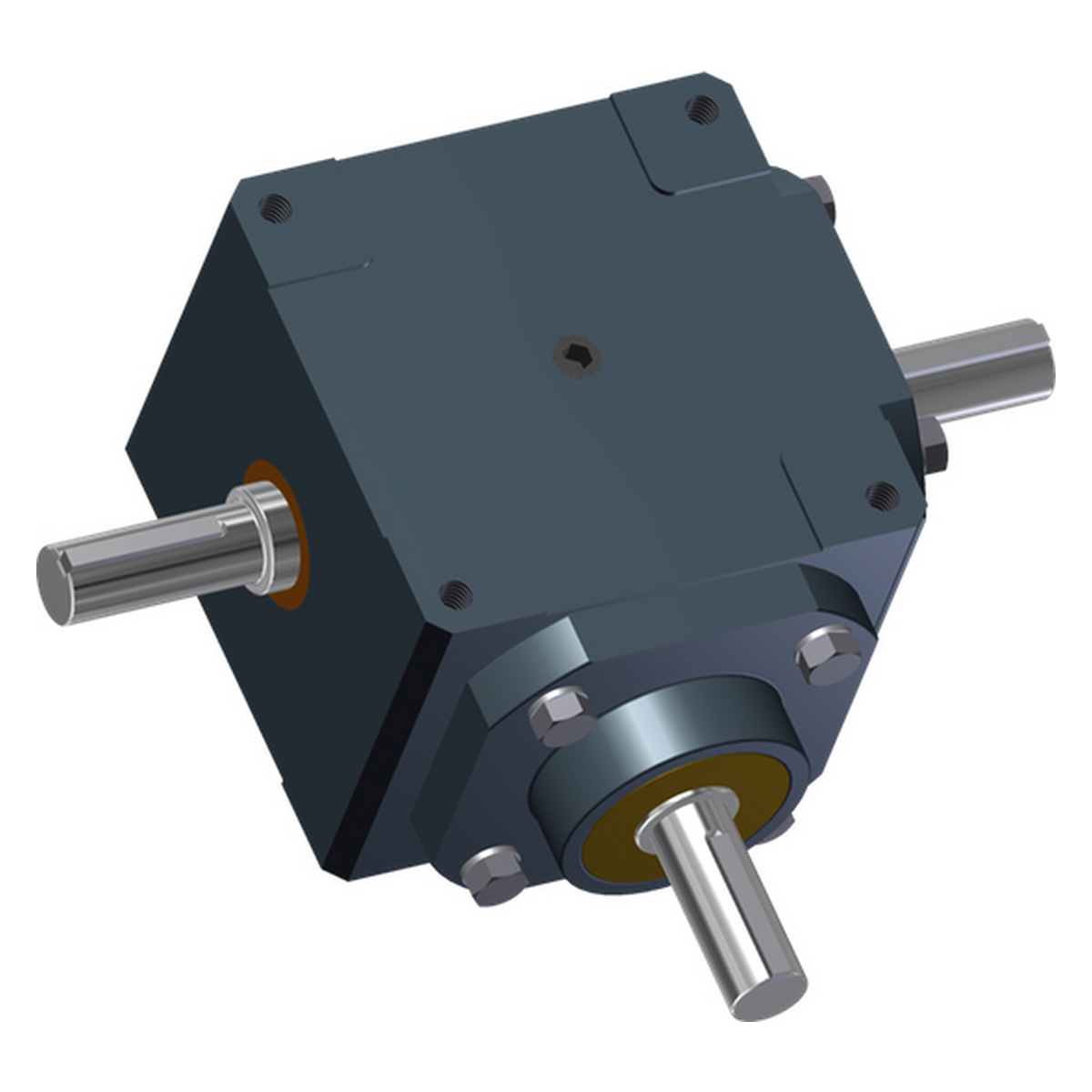

3SB5.00/2:1BM.750 Spiral Bevel Gearbox
Spiral Bevel 3-Way Right Angle Gearbox with 5.00 in. Wide Housing, 2:1 Ratio, Base Mounting and .750 in. Diameter Shafts.
- Sealed, Leak Proof Gearcase
- Machined Aluminum Construction
- Anodized Gearcase
- 303/304 Stainless Steel Shafts
- 8620 12DP 22T Heat-Treated Case-Hardened Gears
- (3) R16 Double Sealed Ball Bearings
- (3) Tapered Roller Bearings
- Dual Lip Spring Loaded Shaft Seals
- Stainless Steel Fasteners
- Pre-Lubricated w/Lubriplate 1500
- Zerk Porting
- (3) Stainless Steel Keys Included
| # of Ball Bearings | 3 |
| # of Shafts | 3 |
| Housing Width (in.) | 5.00 |
| Key Size | .188 |
| Max RPM | 2400 |
| Max Torque, (in.lb.) | 876 |
| Model # | 3SB5.00/2:1BM.750 |
| Mounting Type | Base |
| Ratio | 2:1 |
| Shaft Dia. | .750 in. |
| Speed Rating | 2400 |
Click image to enlarge
