4304-0403

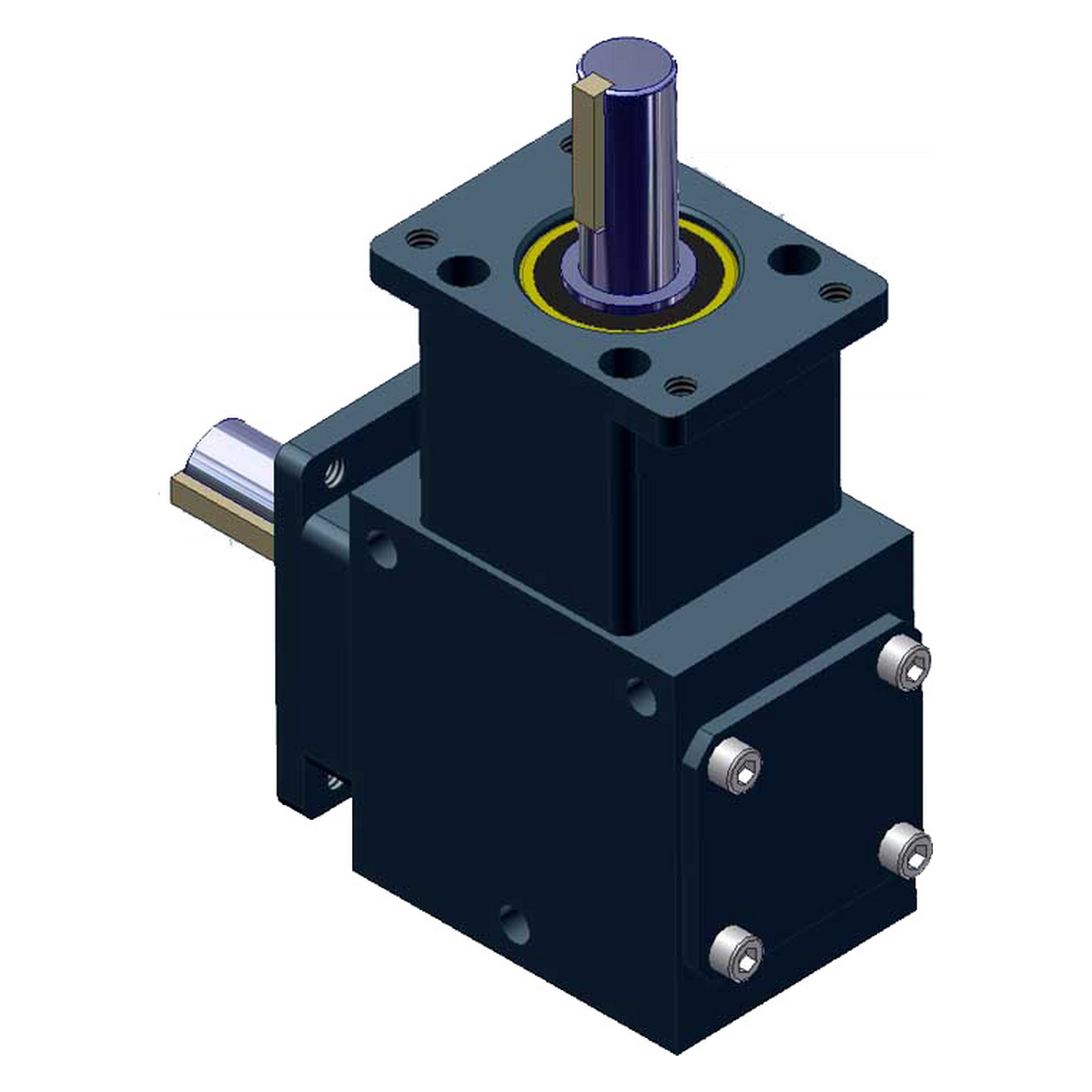

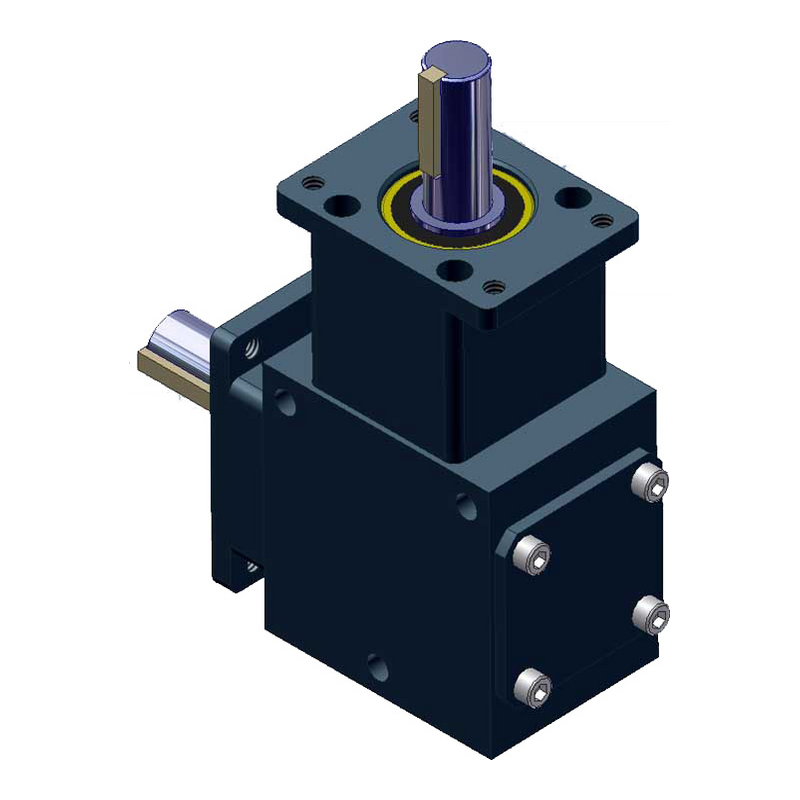

2SB2.125/1:1FMSBM.625 Spiral Bevel Gearbox
Spiral Bevel 2-Way Right Angle Gearbox with 2.125 in. Wide Housing, 1:1 Ratio, Flange and Side Base Mounting and .625 in. Diameter Shafts.
- Sealed, Leak Proof Gearcase
- Machined Aluminum Construction
- Anodized Gearcase
- Carbon Steel Shafts
- 8620 Heat-Treated Case-Hardened Gears
- Double Sealed Ball Bearings
- Pre-Lubricated w/Magnalube-G
- (2) Keys Included
| # of Ball Bearings | 4 |
| # of Shafts | 2-Way |
| Crossover | Mitrpak R-101; Zero-Max Crown C108806 |
| Housing Width (in.) | 2.125 |
| Key Size | 3/16 |
| Max RPM | 1800 |
| Max Torque, (in.lb.) | 82 |
| Model # | 2SB2.125/1:1FMSBM.625 |
| Mounting Type | Flange & Side Base |
| Ratio | 1:1 |
| Shaft Dia. | .625 in. |
| Speed Rating | 1.8 HP @ 1800 RPM |
